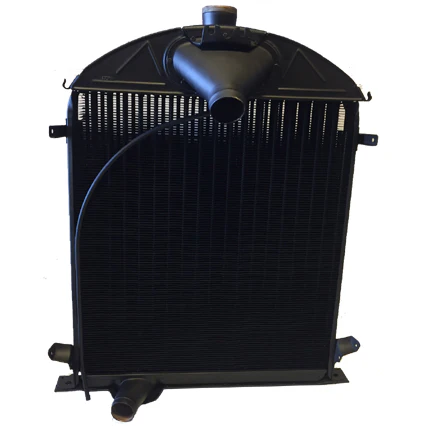

Features of the 1928 and 1929 Model A and Model AA radiators include:

Tellurium copper fin core with 6 fins per inch
Round drawn copper tubes that conduct heat 4 times faster than the seamed brass original design

• Die stamped three piece brass top tanks with model correct die stampings
• Faux seamed tubes available on request
• Galvanized steel sidewalls to resist rust

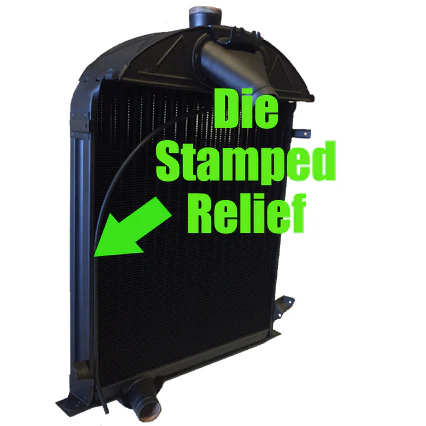

• Sidewalls available with relief like OE (upon request)
• Cowl rod bracket for support rods to firewall

• Internal baffle in top tank to prevent coolant loss
• Funnel shaped top inlet
• Radiators with the late 1929 straight inlet available on request
• Correct angle on lower outlet to clear power house generators
• Electric wire tabs soldered to lower tank

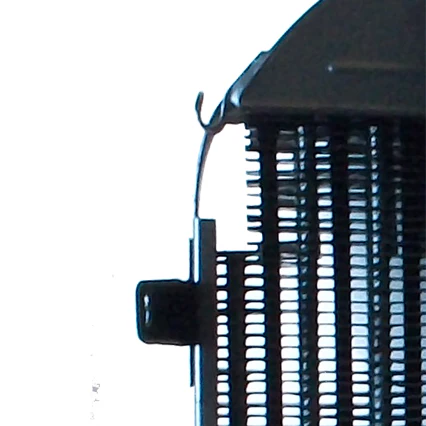

• Hood mount tabs soldered to top tank
• Painted flat black to aid in heat exchange

Our 1928 and 1929 Model A and Model AA truck reproductions are aftermarket products.  The design is based upon original drawings provided by Ford and original radiators we have collected over the last 44 years.  Each radiator is tested with an original Ford shell to assure general fit, appropriate neck placement and accurate mounting bracket placement. Each 1928-1929 radiator is also tested with an original 1928 steel fan shroud to assure fitment.  If for any reason you are not satisfied with the fit, finish, design or craftmanship the radiator may be returned to us postage pre-paid in new and re-saleable condition for a refund.

1928-1929 Fords had many changes, read about the ones that cause people problems.  If you have modified or altered your vehicle in anyway, please order from the bespoke radiator section.  If you wish to restore your OE radiator using your OE tanks, brackets and/or castings please visit the restoration section of our website to begin the process.

Made in the USA (and made with 99.99% North American sourced materials!)
