An original 1935 Chevy Standard Radiator had a 2-1/8" Harrison V Cell film core with a water passage of 1-5/8" with 1/4" lead dip on the face and rear and we replace this with a 1-13/16 10FPI tube and fin core.

The original Harrison v cell core was a ribbon cellular core comprised of narrow passages that can clog with rust, sediment or get coated over time with hard scale or oil from the engine.

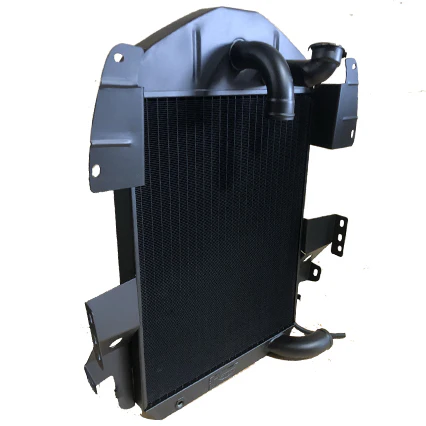

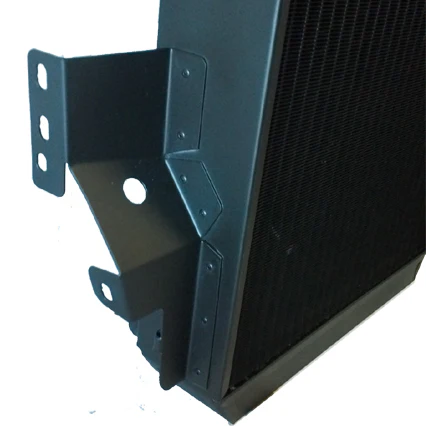

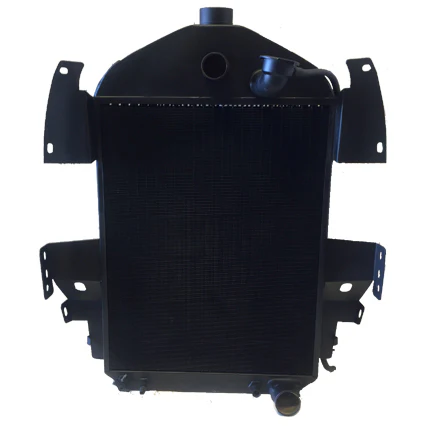

Images reflect past builds and illustrate various elements of design.  The radiator you order will be constructed based on the information you provide for your bespoke build.

Made in the USA
